Products and Services

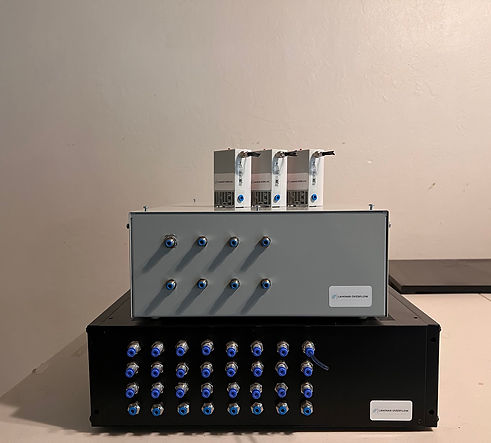

Benchtop Pressure Controller
-
Highly configurable pressure controller
-
2 to 24 regulators.
-
0 to 1bar, 0 to 2bar. 0 to 6bar, -1 to 5bar pressure range
-
Multiple outputs per regulator (1 to 4)*
-
Flow meter support (Q1’23)
-
Pressure sensor support (Q1’23)
-
-
Advanced Control:
-
DC, square, triangle and sine wave output options
-
Synchronization over multiple channels (with phase control)
-
Electronics bandwidth up to 100Hz
-
Programmable condition-based output.
-
-
Software with automation in mind:
-
Intuitive GUI for manual control and script development
-
Simple python library for script automation
-
Single Channel Pressure Controller
-
USB-powered single regulator
-
0 to 1bar, 0 to 2bar. 0 to 6bar, -1 to 5bar pressure range
-
Simple Interface:
-
Serial interface. Start using the regulator in minutes
-
Preset pressure saved in non-volatile memory. Use it without a PC
-
Compact size.
-
4mm OD push-to-connect tubing interface.
-
-
*Some combinations of outputs/regulators may not be possible
Services
-
OEM version available.
-
Integration of custom peripherals (Cameras, Motors, TECs, etc) to the pressure controller
-
Custom scripting method support
